Description

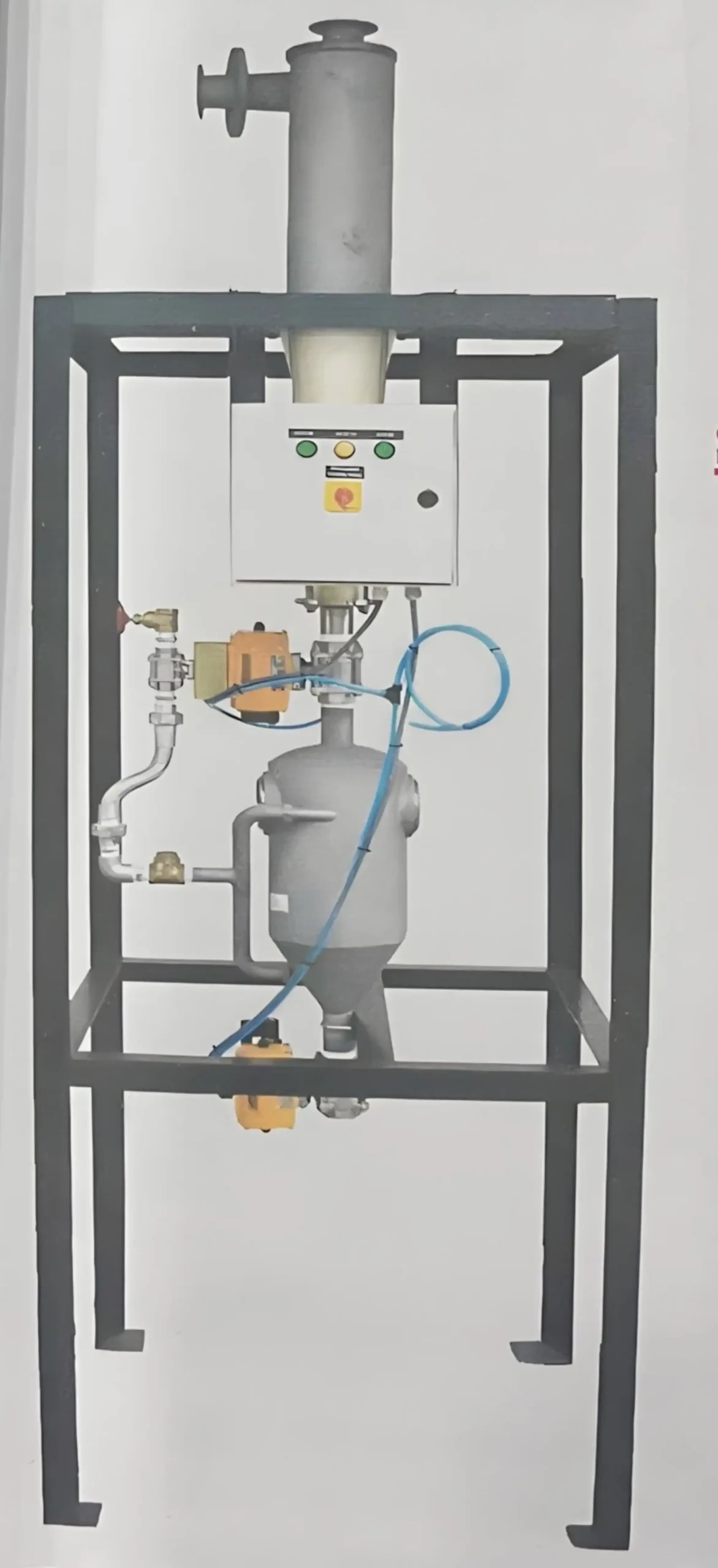

The Single Sand Cyclone is a standalone unit designed to separate sand and fine solids from oil or water in industrial processing. Utilizing centrifugal force inside the cyclone chamber, it effectively reduces sediment buildup, minimizes clogging, and decreases wear on downstream equipment.
Working Principle
-
Liquids containing sand or sludge are fed into the cyclone chamber
-
The centrifugal force generated by the swirling motion causes heavier particles (sand, sludge) to settle at the bottom
-
Cleaned water or oil is discharged from the upper outlet
-
Operates continuously with high efficiency
Key Features
-
Compact single cyclone system – easy to install and operate
-
Reduces system clogging and machinery wear
-
Robust construction, resistant to high pressure and corrosion
-
Enhances separation efficiency and minimizes residual sand in the system
-
Easy maintenance, with accessible parts for cleaning
Suitable for
-
Palm oil extraction mills
-
Industries requiring separation of sand from liquids
-
Processing systems with moderate levels of sand or sludge
Materials
-
Made from industrial-grade carbon steel or stainless steel
-
Resistant to pressure and abrasion from sand and solids
Size & Capacity
-
Handles capacities from 5 to 10 tons per hour
-
Available in various sizes or custom-built (Made to Order) to fit specific requirements
